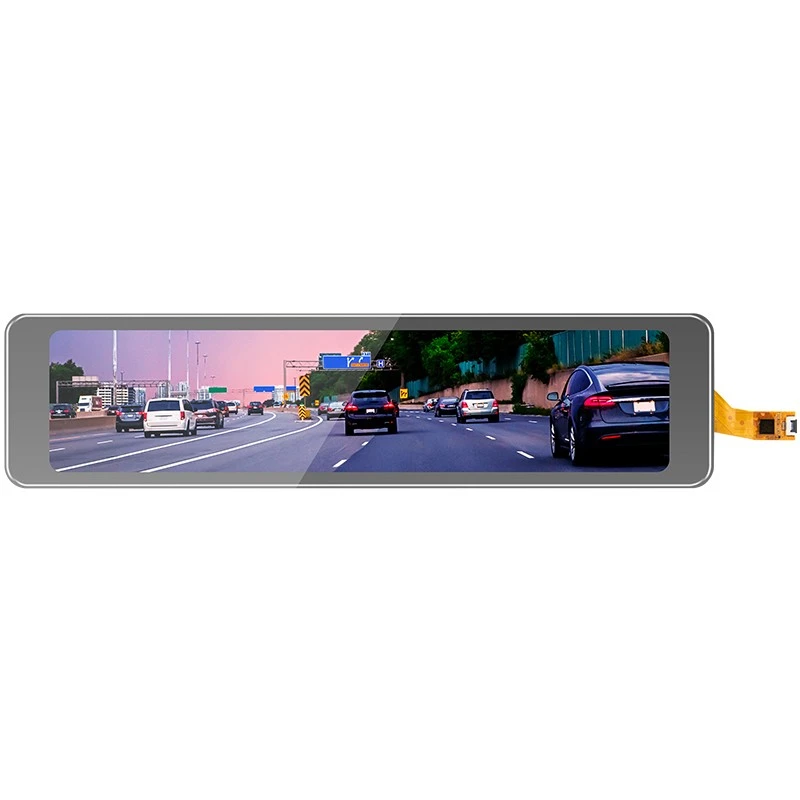

11.26 Inch Waterproof TFT LCD Display with Capacitive Touch Panel
This 11.26-inch waterproof TFT LCD integrated display features IPS high-definition imaging combined with PCAP multi-touch technology, making it ideal for industrial equipment, in-vehicle systems, and outdoor control terminals.
Description
11.26 Inch Waterproof TFT LCD Display with Capacitive Touch Panel Overview
This 11.26-inch waterproof TFT LCD integrated display features IPS high-definition imaging combined with PCAP multi-touch technology, making it ideal for industrial equipment, in-vehicle systems, and outdoor control terminals.
Technical Parameters
|
Category |
Specification |
|
Display Type |
TFT-LCD, IPS Technology |
|
Touch Technology |
Projected Capacitive (PCAP / PCT) Touch Panel |
|
Diagonal Size |
11.26 Inches |
|
Active Area |
57.948 mm(H) ×252.864 mm(V) |
|
Resolution |
440 (RGB) × 1920 pixels |
|
Aspect Ratio |
22.9:9 |
|
Brightness |
550 nits (cd/m²) (Typ.) |
|
Viewing Angle |
85/85/85/85 (Left/Right/Up/Down) (Typ.) |
|
Contrast Ratio |
1000:1 (Typ.) |
|
Interface |
MIPI DSI 4-lane, 20pin FPC connector |
|
Touch Points |
10-point multi-touch |
|
Surface Hardness |
Hard Coating (6h/7H) |
|
Waterproof Rating |
IP65 (Front Panel) / Customizable |
|
Lamination |
Optical Bonding (OCA/OCR) - Anti-glare & Anti-reflection |
|
Operating Temperature |
-20°C ~ +70°C (Custom ranges available) |
|
Storage Temperature |
-30°C ~ +80°C |
|
Supply Voltage |
3.3V (Typ. for logic) / 12.0V for LED backlight |
|
Backlight Lifetime |
50,000 hours (Typ.) |
Key Advantages of 11.26 Inch Waterproof TFT LCD Display with Capacitive Touch Panel
440×1920 Ultra-Wide Resolution + IPS Full-Viewing-Angle Technology: Enables the complete display of multitasking interfaces, enhancing operational efficiency and readability.
550-nit High-Brightness Backlight + 1000:1 Contrast Ratio: Maintains a clear display even in bright lighting conditions, making it suitable for outdoor and in-vehicle applications.
IP65 Front-Panel Protection + Full-Bonding Structure: Effectively resists dust, water, and oil stains, ensuring suitability for long-term use in industrial and outdoor environments.
PCAP Touch Technology: Supports 10-point multi-touch capabilities; combined with an optical bonding process, it enhances touch precision and anti-interference performance.
Structure and Integration Design
Physical Design: 11.26-inch ultra-wide bar-type form factor, optimized for embedded devices.
Mounting Method: Panel-flush mounting / Screw-fixed installation.
Interface Design: MIPI DSI 4-lane (20-pin FPC) for high-speed data transmission.
Structural Process: OCA/OCR full lamination, reducing glare and enhancing stability.
OEM/ODM Customization Solutions
Size / Structural Customization
Brightness (Standard / High Brightness / Sunlight-Readable)
Waterproof Rating (IP65–IP68)
Touch Solution (Touch Points / Sensitivity / Glove Touch)
Interfaces (MIPI / LVDS / RGB, etc.)
Cover Glass (Thickness / AR / AG / AF)
Optical Bonding (OCA / OCR)
Logo & Appearance Customization
Safe Packaging & Worldwide Shipping
Packaging: Anti-static bag + EVA cushioning + reinforced outer carton; shockproof and anti-static protection.
Shipping: Supports air freight via DHL/UPS/FedEx as well as sea freight for bulk shipments, catering to global wholesale procurement needs.
FAQ
Q: Is this 11.26 inch TFT LCD display waterproof?
A: Yes. The front panel is IP65 rated and fully protected against dust, water splashes, and oil contamination.
Q: Does the touch screen support multi-touch operation?
A: Yes. It supports 10-point capacitive multi-touch with fast response and high accuracy.
Q: Can it be used in outdoor environments?
A: Yes. With 550 nits high brightness and wide temperature design, it is suitable for outdoor and semi-outdoor applications.
Q: What interface options are available?
A: Standard MIPI DSI 4-lane interface is used. LVDS or RGB interfaces can be customized.
Q: Do you support OEM/ODM customization?
A: Yes. We support full customization including size, brightness, touch function, interface, and branding.
