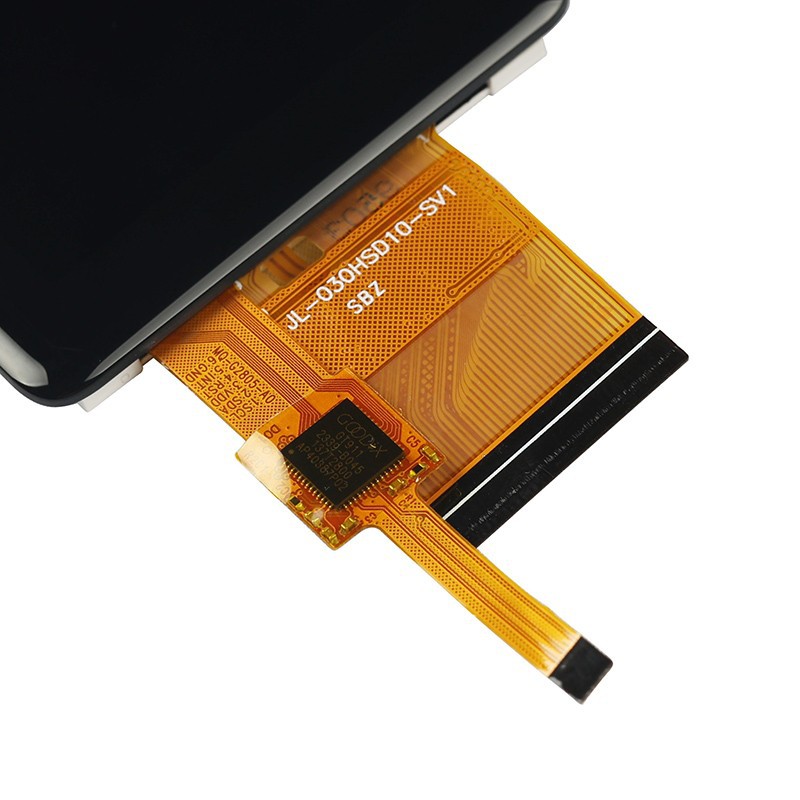

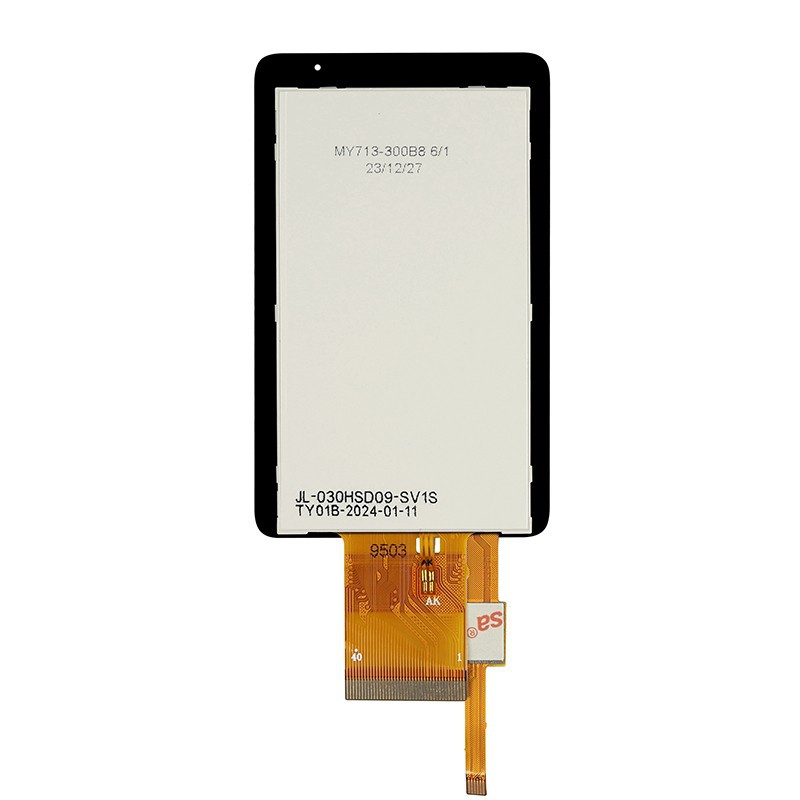

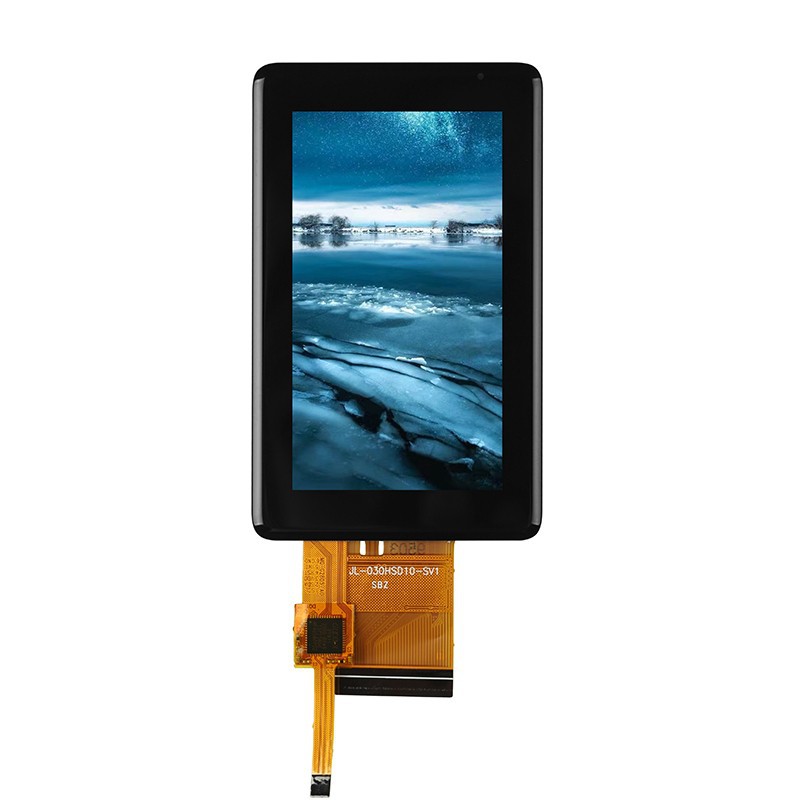

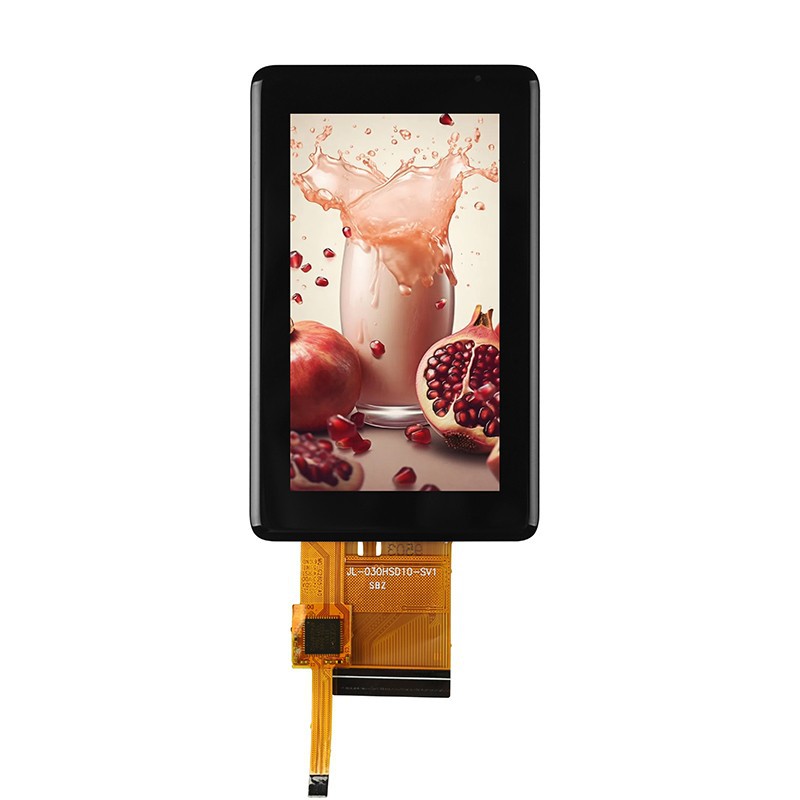

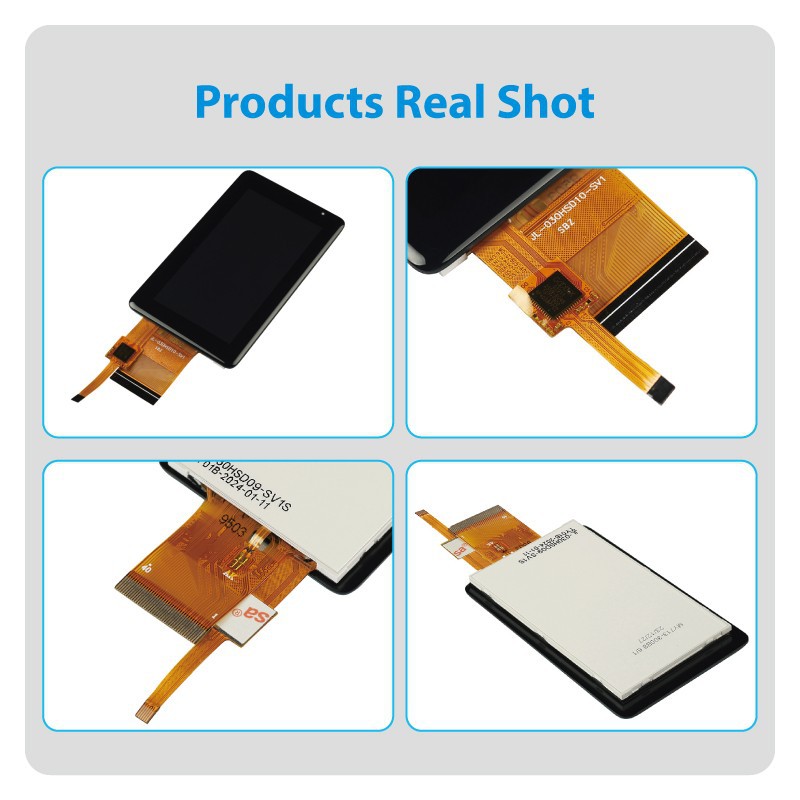

3 Inch Ips Display LCD TFT Touchscreen
The 3 Inch Ips Display LCD TFT Touchscreen is a high-resolution IPS TFT module designed for embedded systems requiring compact size, high pixel density, and reliable touch interaction. It integrates an IPS full-view display with optional 5-point capacitive touch, making it suitable for industrial control, smart devices, and handheld terminals.
Description
The 3 Inch Ips Display LCD TFT Touchscreen is a high-resolution IPS TFT module designed for embedded systems requiring compact size, high pixel density, and reliable touch interaction. It integrates an IPS full-view display with optional 5-point capacitive touch, making it suitable for industrial control, smart devices, and handheld terminals.

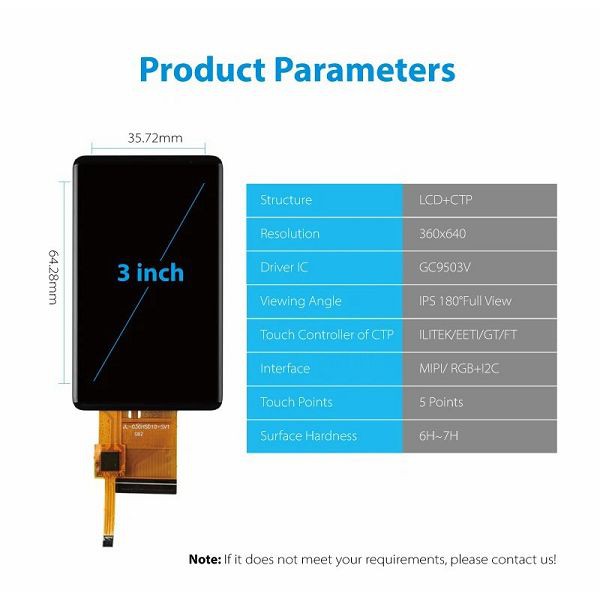

Technical Specifications
|
Parameter |
Description |
|
Display Type |
TFT LCD with IPS Technology |
|
Structure |
LCD + CTP |
|
Screen Size |
3.0 inch |
|
Active Area |
36.72 × 65.28 mm |
|
Resolution |
360 × 640 |
|
Driver IC |
GC9503V |
|
Viewing Angle |
IPS 180° Full View |
|
Color Depth |
16.7M (RGB 8-bit) |
|
Touch Controller |
ILITEK / EETI / GT / FocalTech |
|
Touch Points |
5-point multi-touch |
|
Interface |
MIPI / RGB + I2C |
|
Surface Hardness |
6H–7H glass cover |
|
Backlight Type |
LED, 50,000 hours lifetime |
|
Operating Voltage |
3.3V ± 10% |
|
Response Time |
25 ms (typical) |
|
Contrast Ratio |
450:1 (typical) |
|
Storage Temperature |
-30°C to 80°C |
Applications
Smart control panels (HMI)
Industrial handheld devices
Smart home controllers
Medical portable instruments
IoT and embedded terminals
Security and access control systems

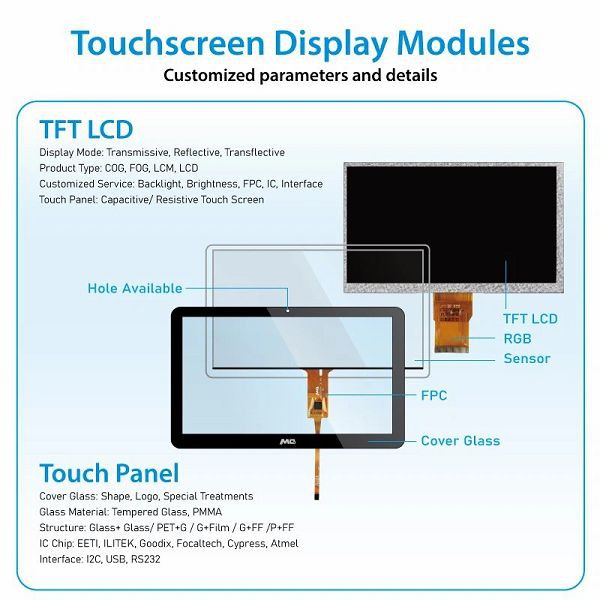

Customization Options
To support different product designs, this module can be customized in:
Touch IC selection (ILITEK / EETI / GT / FocalTech)
Interface configuration (MIPI / RGB + I2C)
FPC layout and connector type
Cover glass thickness and shape
Brightness tuning for indoor/outdoor use
Quality & Reliability
Each 3 Inch Ips Display LCD TFT Touchscreen undergoes strict quality control before shipment, including:
100% electrical testing
Optical inspection (brightness, uniformity, color accuracy)
High-temperature aging test
Touch response calibration test
FAQ
Q: What is the MOQ?
A: Standard MOQ is 100 pcs for standard models, sample orders are supported.
Q: What is the lead time?
A: Typical lead time is 2–4 weeks depending on customization and order volume.
Q: What payment terms are available?
A: T/T in advance is standard; PayPal for samples and LC for large volume orders are available.
Q: What trade terms do you support?
A: EXW, FOB, and CIF depending on customer shipping requirements.
Q: How do you ensure product quality?
A: All units are 100% tested including aging, optical inspection, and functional verification before shipment.
Q: What packaging method is used?
A: Anti-static tray + foam protection + reinforced export carton to prevent transport damage.
Q: Can the display be customized?
A: Yes, we support full OEM customization including interface, touch IC, brightness, and mechanical structure.
Q: Is long-term supply stable?
A: Yes, component sourcing and production planning are controlled to support long lifecycle OEM projects.
Q: Can I request samples before bulk order?
A: Yes, sample units are available for evaluation and integration testing.
