TFT LCD Touch Screen

Custom Industrial TFT LCD Touch Screen Modules

We design and manufacture industrial-grade TFT LCD touch screen modules for embedded systems, HMI platforms, medical equipment, and industrial automation devices.

Our solutions combine IPS TFT LCD panels, high-brightness backlight, and industrial-grade capacitive touch integration, ensuring stable performance in demanding environments and long product lifecycle support.

First 12 Last

Flagship Model: 10.1 Inch IPS TFT LCD Touch Screen

Engineering Positioning：

This 10.1-inch model is designed as a direct engineering replacement for 1024×600 TN-based systems, maintaining mechanical and electrical compatibility while upgrading display performance to IPS full-view technology.

It is commonly used in system upgrades where redesign cost must be minimized.

Parameter	Details
Display	10.1" TFT LCD, 1024×600 resolution, 16.7M colors, LED backlight
Touch	Projected capacitive, 5-point, glass surface hardness ≥6H
Brightness	550 cd/m²
Viewing Angles	170°(H)/170°(V) IPS Full Angle
Interface	I2C / USB (Touch Interface), RGB 24-bit( LCD), HDMI(optional)
Operating Temp.	-20°C to 70°C
Contrast Ratio	600~800
Customizable Support	Glove/Wet-Hand operation

Integration Note: No PCB redesign is required for most TN-compatible systems when using this module.

product key technologies

We provide full customization support for different industrial applications:

Display Customization
• Size and resolution adjustment
• Brightness optimization for indoor/outdoor use
• Wide temperature adaptation

Touch Customization
• Glove touch support
• Wet hand operation capability
• Multi-touch sensitivity tuning

Structural Customization
• Cover glass design and thickness options
• Logo printing and branding support
• Optical bonding solutions

Interface & Electronics
• Interface protocol customization
• Driver IC matching support
• Embedded system integration assistance

Pre-Production Engineering Validation
• Electrical interface verification before mass production
• Mechanical fitment validation with customer housing
• Sample-level functional testing under real system conditions

TN vs. IPS: Why Upgrade Your HMI

Feature	Legacy TN Display	Our Industrial IPS Module
Viewing Angle	Narrow (Image inversion at angles)	170° Full View (Consistency from all sides)
Color Accuracy	6-bit / Basic	16.7M Vivid True Colors
Sunlight Clarity	Low / Washed out	High Brightness & High Contrast
Touch Integration	External / Air-gap	Fully Integrated / Optical Bonding Ready
Reliability	Consumer Grade	Industrial Grade (Extended Life Cycle)

Engineering Compatibility Notice

While this module is designed as a TN replacement solution, compatibility depends on system-level architecture.

We strongly recommend engineering sample testing before mass production to ensure:

Electrical signal compatibility

Mechanical fit accuracy

System timing stability

Industrial Application Scenarios

Medical Diagnostics

Precision color reproduction for ultrasound and patient monitoring.

Industrial Automation

Rugged HMI panels for CNC machines, PLCs, and factory controls.

Outdoor Infrastructure

Sunlight-readable displays for EV chargers and vending terminals.

Smart Security

High-definition touch panels for premium home and office automation systems.

Pre-Production Engineering Validation

Pre-Production Engineering Validation Process

To reduce integration risks, we follow a structured validation workflow:
• Requirement Review
Detailed analysis of electrical, mechanical, and interface specifications.

• Sample Development
Standard models: 7–15 days
Custom projects: prototype-based engineering schedule

• System-Level Testing
Functional testing under real application conditions (customer-side or joint testing).

• Optimization & Tuning
Touch sensitivity, brightness, and interface adjustments based on enclosure feedback.

• Pilot Production → Mass Production
Transition from prototype validation to stable OEM production.

Engineering Risk Control Statement

We recommend prototype validation before mass production to ensure:
Signal timing compatibility
Mechanical fit accuracy
System-level stability

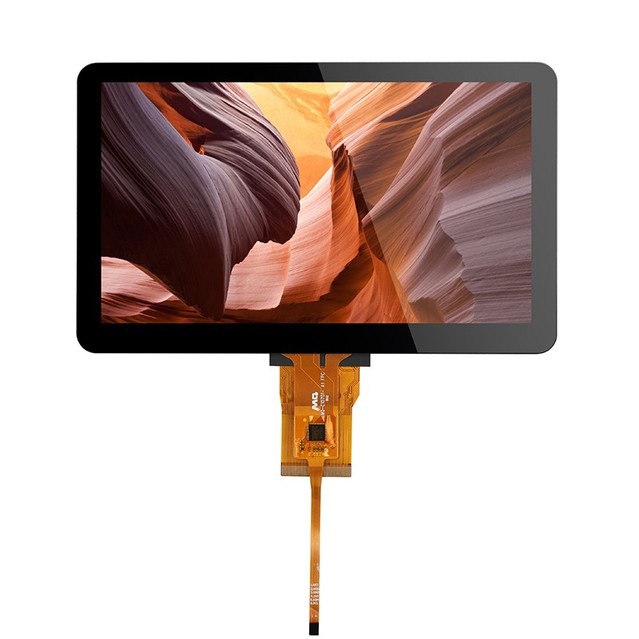

7 Inch 1024x600 LCD Display With Capacitive Touch Screen manufacturers

Quality, Reliability & Longevity

100% Aging Test

Every module undergoes 24-48 hours of continuous power-on testing.

Environmental Stress

High/Low-temperature cycle testing to ensure stability in extreme conditions.

ESD Protection

Built-in protection against static discharge for industrial-grade ESD immunity.

Compliance

Fully compliant with RoHS, REACH, and CE standards.

Long-Term Supply

We offer 5-10 years of supply stability, ensuring your industrial product lifecycle is protected from sudden EOL (End of Life) components.

FAQ

Q: Can this TFT LCD touch screen replace TN displays directly?

A: Yes. The module is designed with compatible mechanical dimensions and pin configuration for easy replacement in many TN-based systems.

Q: Do you support OEM or custom design?

A: Yes. We provide full OEM/ODM services including size, interface, brightness, and structural customization.

Q: Is it compatible with Arduino or embedded systems?

A: Yes. It supports standard interfaces and can be integrated with Arduino, Raspberry Pi, and industrial controllers.

Q: What is the minimum order quantity (MOQ)?

A: MOQ depends on customization requirements. Standard models support small batch sampling.

Q: Can it support glove or wet touch operation?

A: Yes. Touch performance can be customized for glove and wet-hand environments.

Q: Can I get a datasheet and 3D drawings (STP) for evaluation?

A: Yes. Please contact our engineering team, and we will provide full technical documentation within 24 hours.

Q: Do you support small batch orders for testing?

A: Yes, we support sampling and small-batch orders for the prototyping phase before mass production.

Q: Is pin-to-pin compatibility guaranteed for TN replacement systems?

A: Compatibility depends on system architecture. We provide engineering validation support and recommend sample testing before mass production.

Q: Can you provide technical drawings and interface definitions?

A: Yes. We provide datasheets, pin definitions, and 3D mechanical drawings (STP format) for engineering evaluation within 24 hours.
