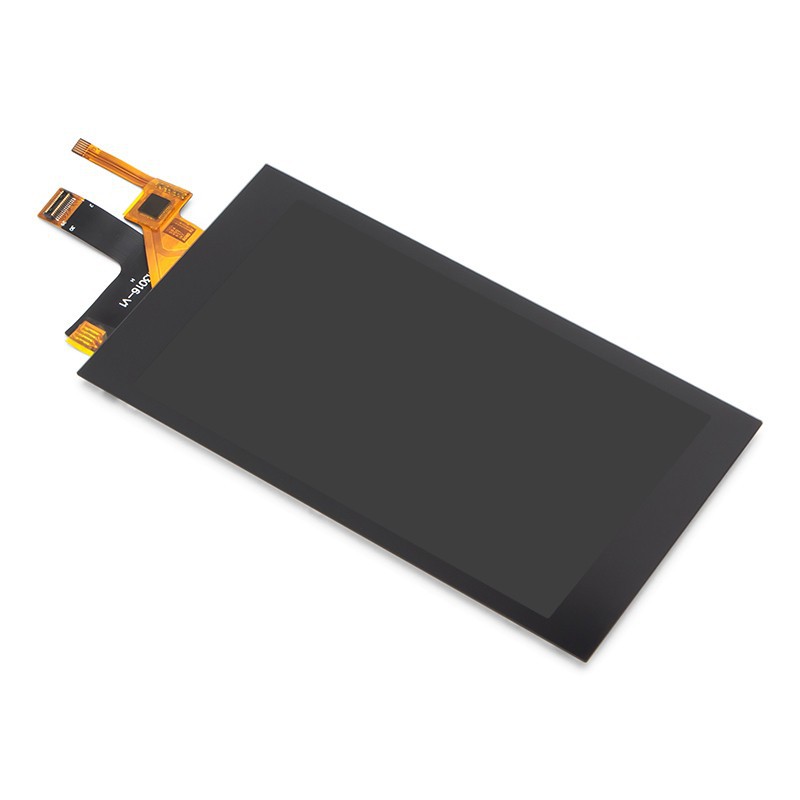

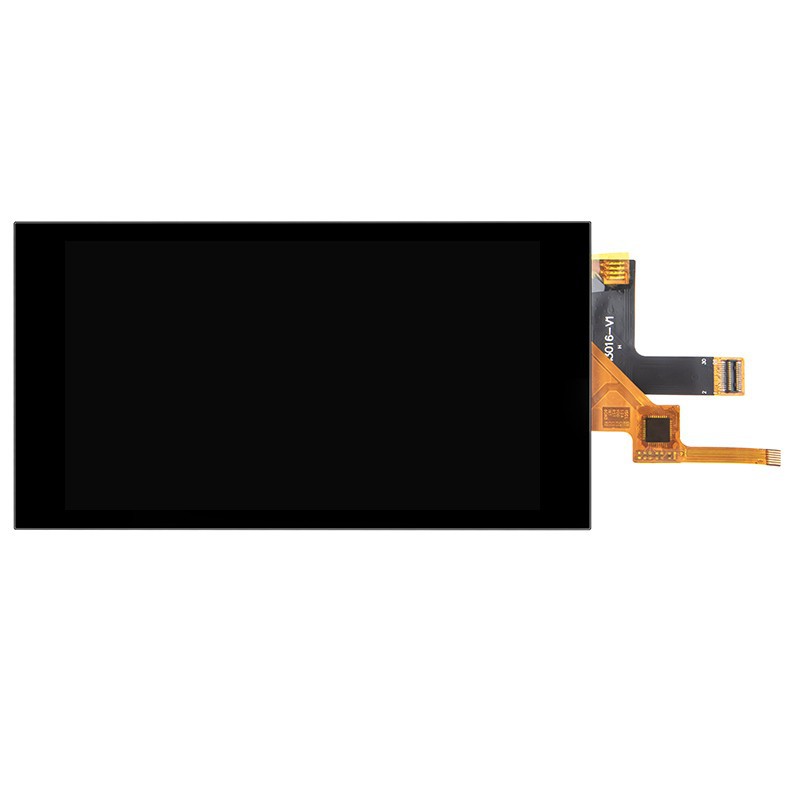

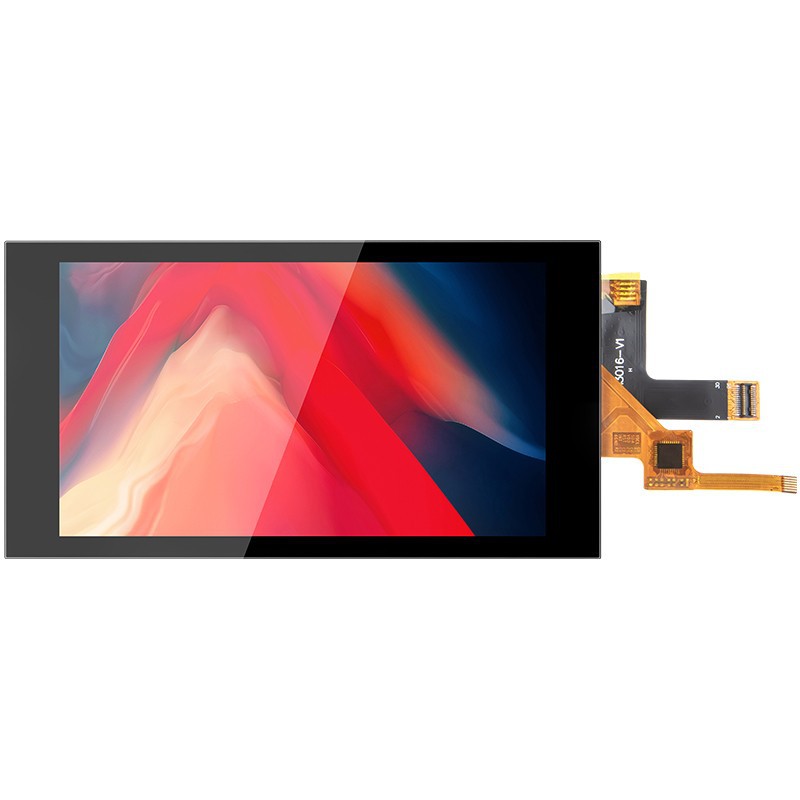

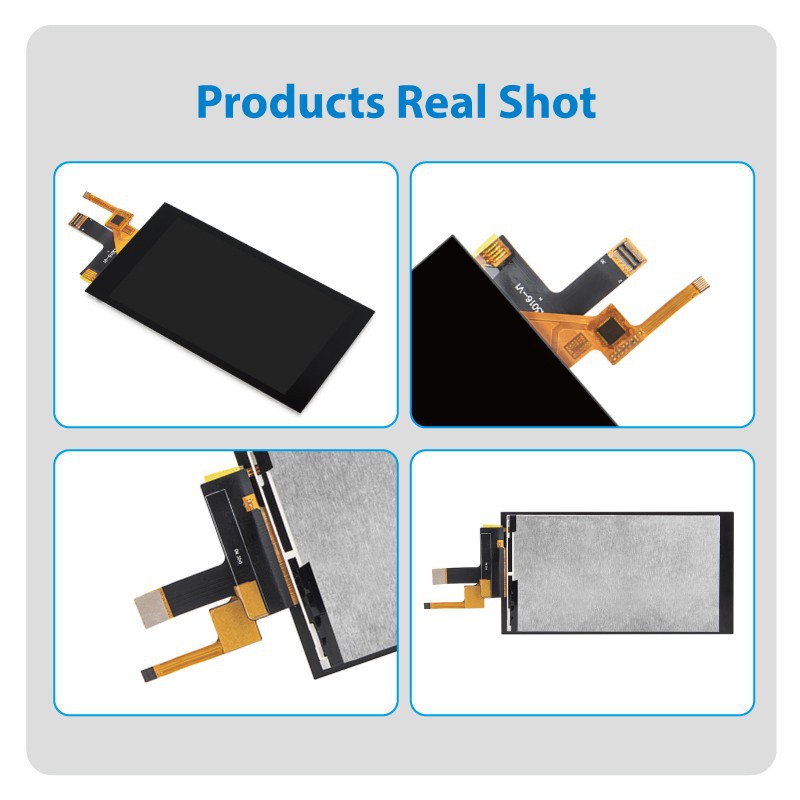

4.5 Inch TFT LCD Capacitive Touchscreen
A compact industrial-grade 4.5 Inch TFT LCD Capacitive Touchscreen designed for embedded systems requiring stable performance, wide viewing angle display, and reliable capacitive touch integration. It supports both MIPI and RGB dual interfaces, making it flexible for different motherboard and SoC platforms.
Description
A compact industrial-grade 4.5 Inch TFT LCD Capacitive Touchscreen designed for embedded systems requiring stable performance, wide viewing angle display, and reliable capacitive touch integration. It supports both MIPI and RGB dual interfaces, making it flexible for different motherboard and SoC platforms.

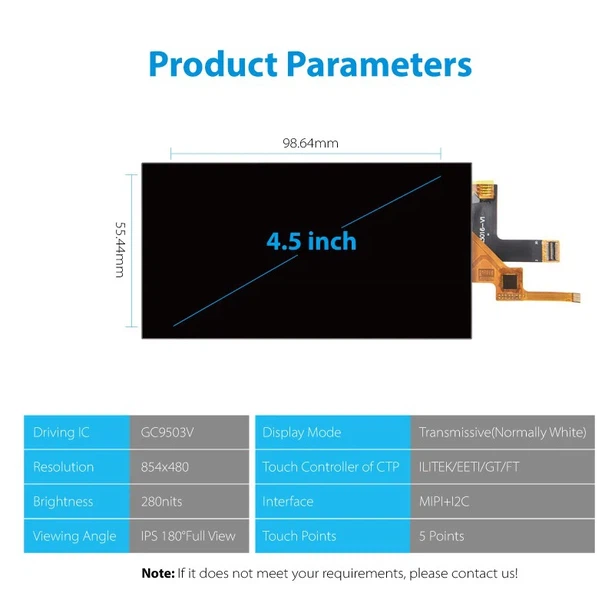

Technical Specifications
|
Item |
Specification |
|
Screen Size |
4.5 inch (diagonal) |
|
Resolution |
480 (H) × 854 (V) |
|
Active Area |
55.44 mm × 98.64 mm |
|
Module Dimensions |
60.0 mm × 109.0 mm × 2.1 mm |
|
Display Type |
TFT LCD (Transmissive, Normally White) |
|
Touch Technology |
Projected Capacitive Touch Panel (PCAP) |
|
Touch Controller |
ILITEK / EETI / Goodix / FocalTech (optional) |
|
Touch Points |
5-point multi-touch |
|
Interface |
MIPI + I2C / RGB parallel (optional) |
|
Driver IC |
ST7701S / GC9503V |
|
Brightness |
280 nits (up to 400 nits optional) |
|
Viewing Angle |
IPS full view (all direction, ~180°) |
|
Operating Temperature |
-20°C to +70°C (industrial grade extendable) |
|
Storage Temperature |
-30°C to +80°C |
|
Connector |
40-pin FPC |
Applications
Industrial HMI control panels
Medical diagnostic and monitoring devices
Automotive dashboard auxiliary displays
Smart home control systems
IoT handheld and embedded terminals
POS and commercial equipment
OEM / ODM Customization
This 4.5 Inch TFT LCD Capacitive Touchscreen supports full engineering customization:
Interface customization (MIPI / RGB selection)
Brightness tuning up to high-brightness versions
Cover glass customization (thickness, shape, logo printing)
Touch IC customization (ILITEK / EETI / Goodix / FocalTech)
Optical bonding (air / OCA / OCR)
Mechanical FPC and connector design customization
Manufacturing & Quality Control
Cleanroom-level assembly for optical and touch integration
100% electrical inspection before shipment
Brightness, color uniformity, and touch function testing
High-temperature aging test for stability validation
Incoming material screening for TFT and touch panels
FAQ
Q: What is the MOQ for this 4.5 Inch TFT LCD Capacitive Touchscreen?
A: Standard models usually start from 100–500 pcs, custom versions depend on design complexity.
Q: What is the lead time?
A: Sample lead time is 7–15 days, mass production is typically 25–35 days.
Q: What payment terms do you support?
A: T/T for bulk orders, PayPal or bank transfer for samples, negotiable for long-term cooperation.
Q: What trade terms are available?
A: EXW, FOB, and CIF depending on shipping and logistics requirements.
Q: What certifications can you provide?
A: RoHS and CE compliance available, with additional certifications upon request.
Q: How is product quality ensured?
A: Each 4.5 Inch TFT LCD Capacitive Touchscreen undergoes 100% inspection and aging testing before shipment.
Q: What is the brightness option range?
A: Standard is 280 nits, with optional upgrades up to 400 nits or higher.
Q: What packaging method is used?
A: Anti-static tray packaging + foam protection + reinforced export carton.
Q: Can I customize this display for my project?
A: Yes, full OEM customization including interface, touch, and mechanical structure is supported.
Q: Is it suitable for industrial environments?
A: Yes, it is designed for stable operation in industrial-grade temperature and usage conditions.
