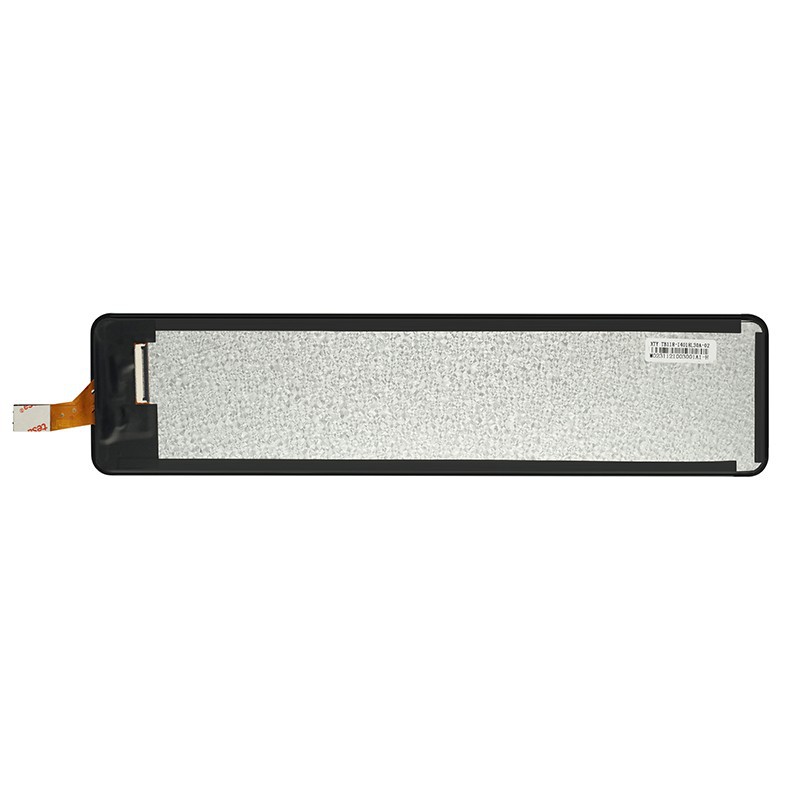

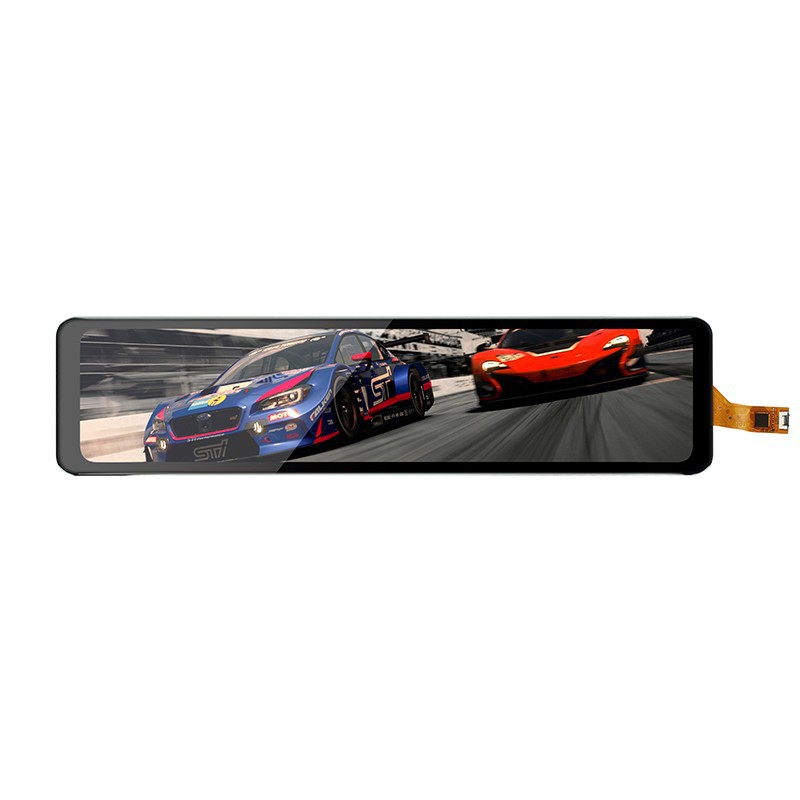

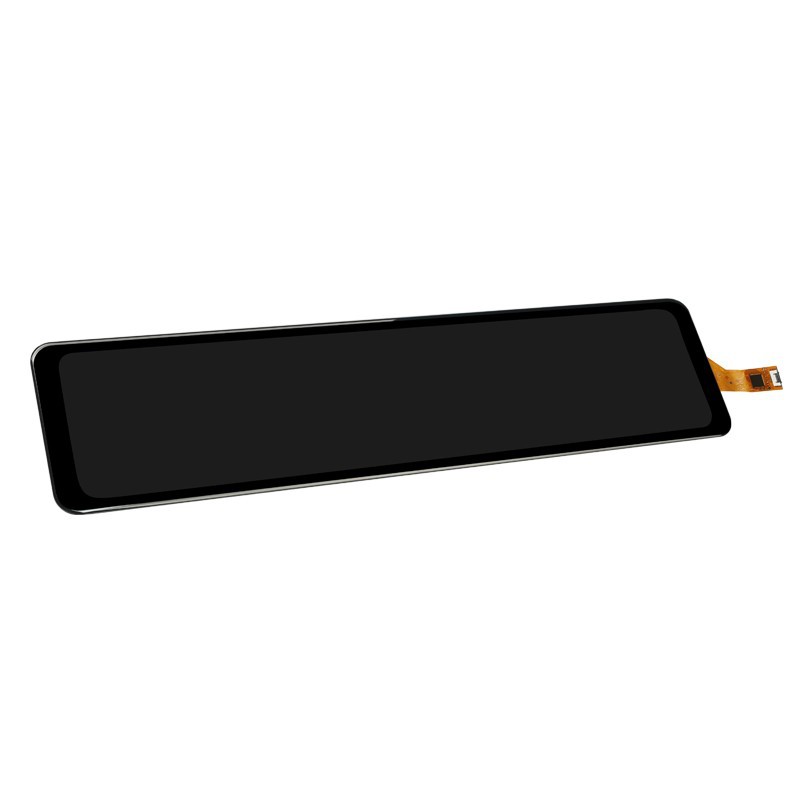

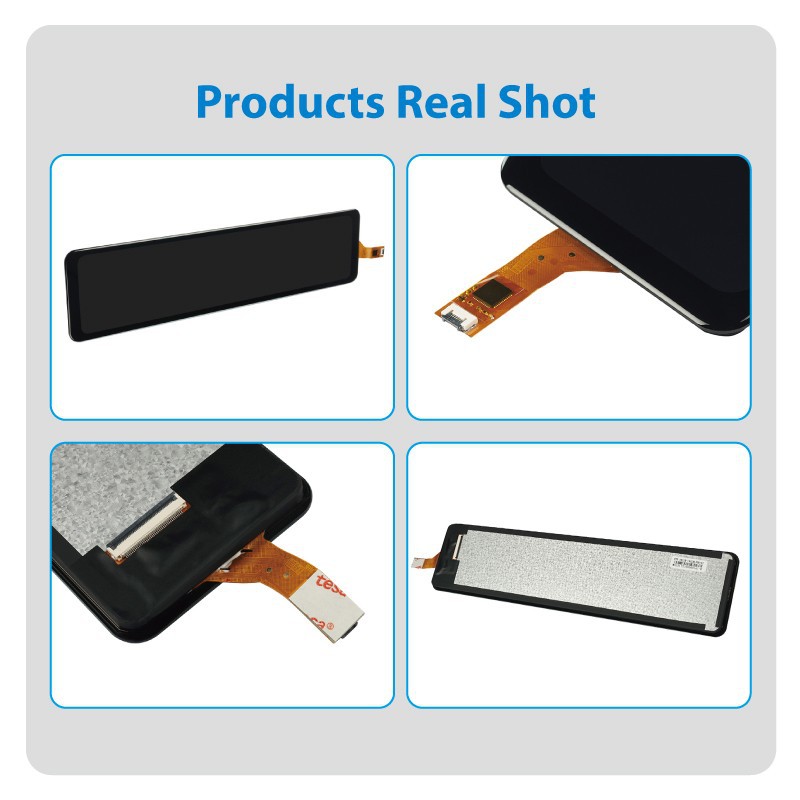

11.88 Inch IPS Capacitive Touch Screen Display
Industrial-grade wide aspect ratio TFT LCD with integrated capacitive touch, designed for HMI systems, smart terminals, industrial controllers, and embedded display applications. The 11.88 Inch IPS Capacitive Touch Screen Display features a stretched bar-type format optimized for compact UI layouts such as control panels and information displays.
Description
Industrial-grade wide aspect ratio TFT LCD with integrated capacitive touch, designed for HMI systems, smart terminals, industrial controllers, and embedded display applications.
The 11.88 Inch IPS Capacitive Touch Screen Display features a stretched bar-type format optimized for compact UI layouts such as control panels and information displays.

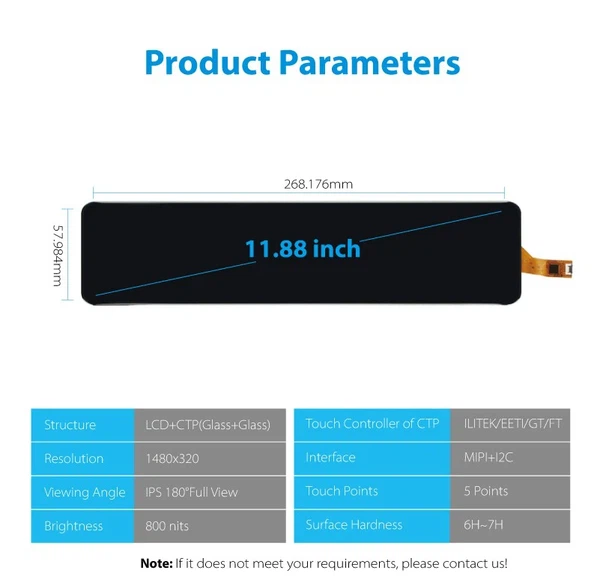

Key Specifications
|
Item |
Parameter |
|
Structure |
LCD + CTP (Glass + Glass) |
|
Screen Size |
11.88 inch |
|
Active Area |
57.984 (H) × 268.176 (V) mm |
|
Resolution |
1480 × 320 |
|
Display Technology |
TFT LCD, IPS (In-Plane Switching) |
|
Viewing Angle |
85/85/85/85 (IPS full viewing) |
|
Brightness |
800 nits (typical) |
|
Contrast Ratio |
900:1 (typical) |
|
Touch Technology |
Projected Capacitive (PCAP / PCT) |
|
Touch Points |
5-point multi-touch |
|
Touch Controller |
ILITEK / EETI / GOODIX / FocalTech optional |
|
Surface Hardness |
6H–7H |
|
Display Interface |
MIPI (2-lane / 4-lane) |
|
Touch Interface |
I²C integrated |
|
Connector |
40-pin FPC |
|
Operating Voltage |
3.3V (logic typical) |
|
Operating Temperature |
-20°C ~ +70°C |
|
Storage Temperature |
-30°C ~ +80°C |
Application Scenarios
Industrial HMI control panels
Smart building and elevator control systems
Energy monitoring terminals
Medical auxiliary display interfaces
Self-service kiosk UI modules
Transportation and fleet control displays
OEM / ODM Customization
The 11.88 Inch IPS Capacitive Touch Screen Display supports flexible engineering customization:
Touch IC selection (ILITEK / EETI / GOODIX / FocalTech)
Cover glass thickness and surface treatment (AG / AR / AF optional)
Brightness tuning for different environments
FPC layout and connector adaptation
Touch sensitivity tuning (glove support optional)
Interface adaptation (MIPI lane configuration optimization)
FAQ
Q: What is the MOQ?
A: Sample orders are supported, and MOQ for mass production depends on customization level.
Q: What is the lead time?
A: Standard models require 2–3 weeks, customized versions require 3–6 weeks depending on engineering changes.
Q: What payment terms are available?
A: T/T for bulk orders, PayPal for samples, and L/C can be supported for qualified long-term cooperation.
Q: What trade terms do you support?
A: EXW, FOB, CIF, and DDP depending on shipment destination and order size.
Q: How is product quality controlled?
A: Each 11.88 Inch IPS Capacitive Touch Screen Display undergoes electrical testing, optical inspection, aging test, and touch function validation before shipment.
Q: What certifications are available?
A: CE, RoHS, and FCC compliance can be provided based on project requirements.
Q: How is packaging handled?
A: Anti-static packaging + foam protection + reinforced export cartons designed for international shipping safety.
Q: Can long-term supply be guaranteed?
A: Yes, stable supply chain control is maintained for OEM long-term production projects.
