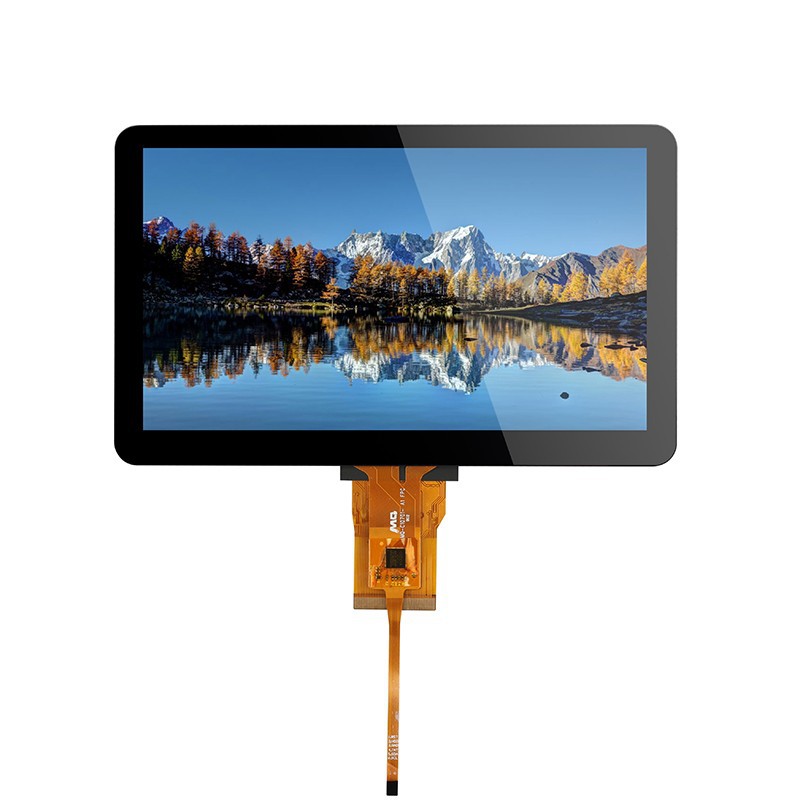

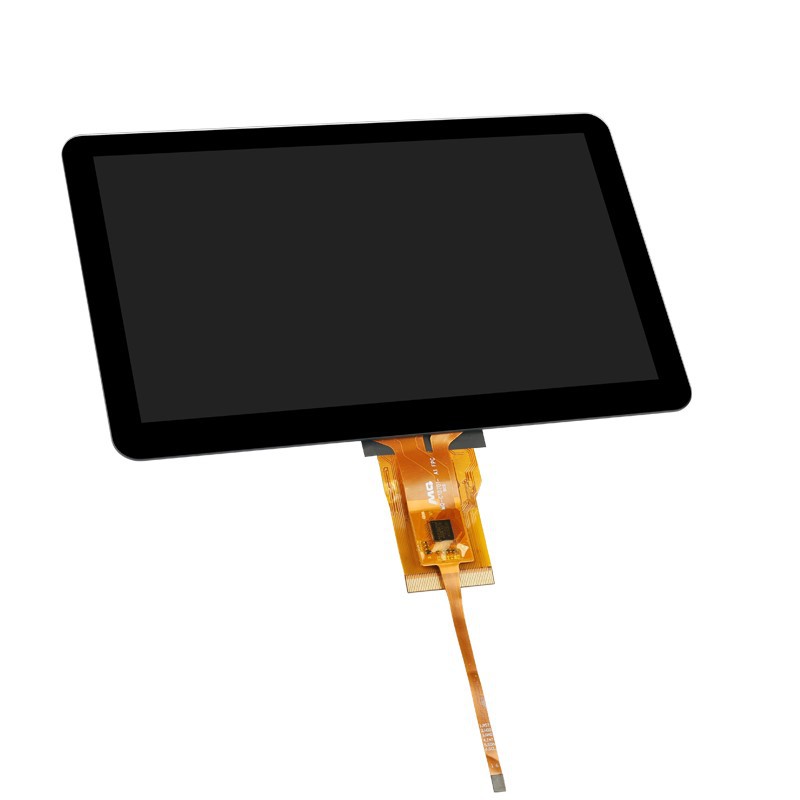

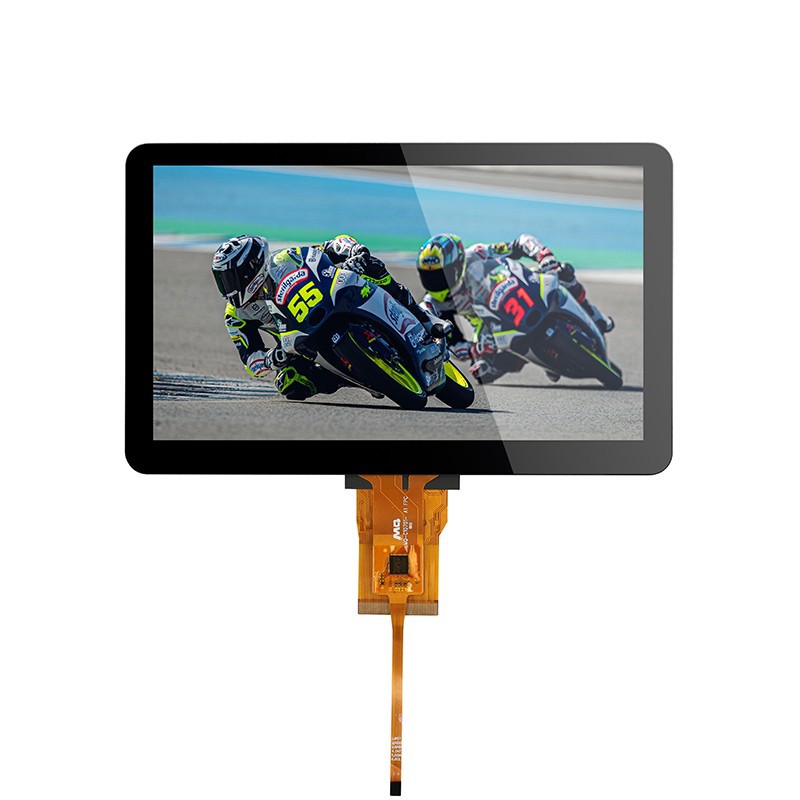

7 Inch 1024x600 LCD Display with Capacitive Touch Screen
Industrial-grade 7-inch LCD module with PCAP touch designed for embedded systems requiring high brightness, wide viewing angle, and stable long-term supply.
Description
Industrial-grade 7-inch LCD module with PCAP touch designed for embedded systems requiring high brightness, wide viewing angle, and stable long-term supply.
The 7 Inch 1024x600 LCD Display with Capacitive Touch Screen is widely used in industrial control, smart terminals, POS systems, and embedded IoT devices where reliability and optical performance are critical.
Key Product Highlights
• 7-inch industrial TFT LCD with capacitive touch (LCD + CTP Glass+Glass structure)
• 1024 × 600 WSVGA resolution for embedded UI clarity
• IPS full viewing angle (180° wide view)
• High brightness up to 1500 nits (sunlight readable optional)
• Rugged design with 2.5D cover glass (7H hardness)
• Industrial temperature support (-20°C to +70°C)
• Flexible interface: RGB + I2C (touch) / MIPI optional
The 7 Inch 1024x600 LCD Display with Capacitive Touch Screen is engineered for 24/7 industrial operation environments.

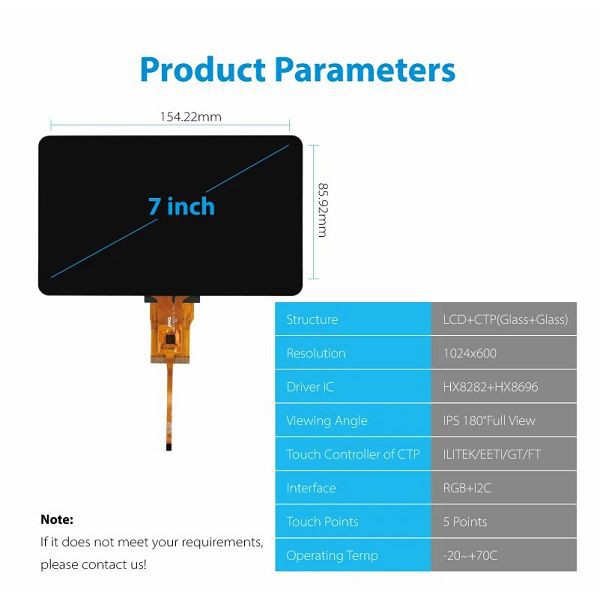

Mechanical & Structural Information
Screen size: 7.0 inch (diagonal)
Physical size: 154.22 mm (L) × 85.92 mm (W)
Structure: LCD + CTP (Glass + Glass)
Cover glass: 2.5D curved edge, 7H hardness protection
Protection level: IP54 (dust and splash resistant)
Technical Specifications
|
Item |
Specification |
|
Display Size |
7 inch |
|
Resolution |
1024 × 600 (WSVGA) |
|
Aspect Ratio |
16:9 |
|
Panel Type |
IPS TFT LCD |
|
Viewing Angle |
178° H / 178° V (Full View) |
|
Brightness |
700 nits (standard), up to 1500 nits (custom) |
|
Contrast Ratio |
800:1 |
|
Touch Type |
Projected Capacitive (PCAP) |
|
Touch Points |
10-point multi-touch |
|
Touch Accuracy |
±1 mm |
|
Interface |
RGB (display) + I2C (touch), MIPI optional |
|
Driver IC |
HX8282 + HX8696 |
|
Touch Controller |
ILITEK / EETI / Goodix / FocalTech |
|
Operating Temp |
-20°C to +70°C |
|
Storage Temp |
-30°C to +80°C |
|
Power Consumption |
2.8W typical / <0.3W standby |
|
Certifications |
ISO 9001, RoHS |
Typical Applications
Industrial HMI control panels
Smart POS systems
Medical devices and diagnostic terminals
IoT control interfaces
Outdoor embedded display systems
Smart automation equipment
OEM / ODM Capability
Interface customization (RGB / MIPI)
Touch controller selection (ILITEK / EETI / Goodix / FocalTech)
Brightness customization (700–1500 nits)
Cover glass design (shape, thickness, logo printing)
Optical bonding (air bonding / OCA optional)
Waterproof / glove-touch tuning
FAQ
Q: What is the MOQ?
A: MOQ is typically 1–10 pcs for samples and 100–500 pcs for mass production depending on customization.
Q: What is the lead time?
A: Sample lead time is 3–7 days, mass production is 2–4 weeks depending on configuration.
Q: What payment terms do you support?
A: T/T, PayPal for samples, and standard terms like 30% deposit + 70% balance before shipment.
Q: What trade terms are available?
A: EXW, FOB, and CIF terms are available depending on order size.
Q: What certifications does the product have?
A: ISO9001 and RoHS are standard; CE and additional certifications can be supported on request.
Q: How is product quality ensured?
A: 100% functional testing, AOI inspection, and 24–48 hour aging test before shipment.
Q: What is the packaging method?
A: Anti-static tray + foam protection + reinforced export carton for safe transportation.
Q: Can brightness and touch be customized?
A: Yes, brightness up to 1500 nits and multiple touch controller options are available for OEM projects.
Q: Is long-term supply guaranteed?
A: Yes, this model is designed for industrial lifecycle supply with stable production continuity.
